Performance Effects of DNSSEC Validation - July 2022

On July 30, 2022, Petr Špaček spoke at the DNS-OARC38 conference about the performance effects of DNSSEC validation in BIND 9. This article recaps the highlights of his presentation for those who may be interested. The slides and a recording of the full presentation are available on our Presentations page.

DNSSEC validation: performance killer?

Traditional wisdom tells us that DNSSEC validation uses more computer resources than non-validated responses. But is it true?

First, we have to decide on what resources we’re talking about. Then, how do we know how much we need? Let’s be scientific and run some specific tests, looking at latency, bandwidth, CPU consumption, the number of operating system sockets, and memory.

Everything starts with the dataset: realistic data is crucial. Fortunately, a real European telco gave us actual, anonymized data with a mix of landline and mobile clients.

In ISC’s tests, we looked at opposite ends of the data spectrum: a lightly loaded server handling 9,000 queries per second (QPS), and a heavily loaded resolver seeing 135,000 queries per second.

A note about QPS: all queries are not equal. Different queries require different amounts of resolver resources, depending on whether there’s a cache hit/cache miss, the answer size, and so on.

We took our huge dataset and downsampled it into smaller sets. We split them into complete sets of queries by source IP address; if the client IP address was included in the dataset, all the queries were included, and if the client IP address was not included, no queries were included. This was important because we needed to keep the cache hit/miss rate exactly as it was in the live dataset.

Test setup

Our test resolver was running BIND 9.18.4 (the latest stable version at the time), and we started each test run with an empty cache. We tested two configurations: one with validation enabled, one without; everything else remained the same between the two sets of tests. The queries were simulated using the DNS Shotgun software tool, which replays a packet capture (pcap), then records the exact timing of queries and replies to the resolver.

Then we come to the harder part of our setup: the Internet. We need authoritative servers, including timing, latency, reliability, etc. – which are hard to measure and simulate, so our test server is actually measured against the live Internet. Of course, that causes lots of noise. To counter that, we repeated each measurement 10 times and then performed some post-processing.

We were concerned with resources consumed on the resolver side, so we needed tools to monitor resource consumption. We wrote scripts that scraped files in /proc and /sys and stored them on disk with timestamps; when everything was complete, we post-processed the raw test files to generate charts.

Scenario 1: 9000 QPS

Note that the 9000 QPS is not a steady query rate like you would get from DNSperf or a similar tool. The packet rate from the pcap we used as input for DNS Shotgun jumps around, like a live network.

Latency

Since we’re talking about DNS, we’re obliged to be obsessed with latency. Traditional DNSSEC validation wisdom tells us that there should be a significant increase in latency because validation is complex, but our experiment doesn’t agree: the latency we saw with both validating and non-validating resolvers was practically the same. In both cases, 90% of the queries were answered within 1 ms; only 10% took 1 ms or more to receive a response, in the first minute, with a completely empty cache.

Logorithmic percentile latency histogram of response time (in ms) vs. slowest percentile of responses, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS and a cold cache.

At the last minute of the 10-minute test, the chart lines are even closer – nothing to see. For 9000 QPS, DNSSEC validation causes no difference in latency.

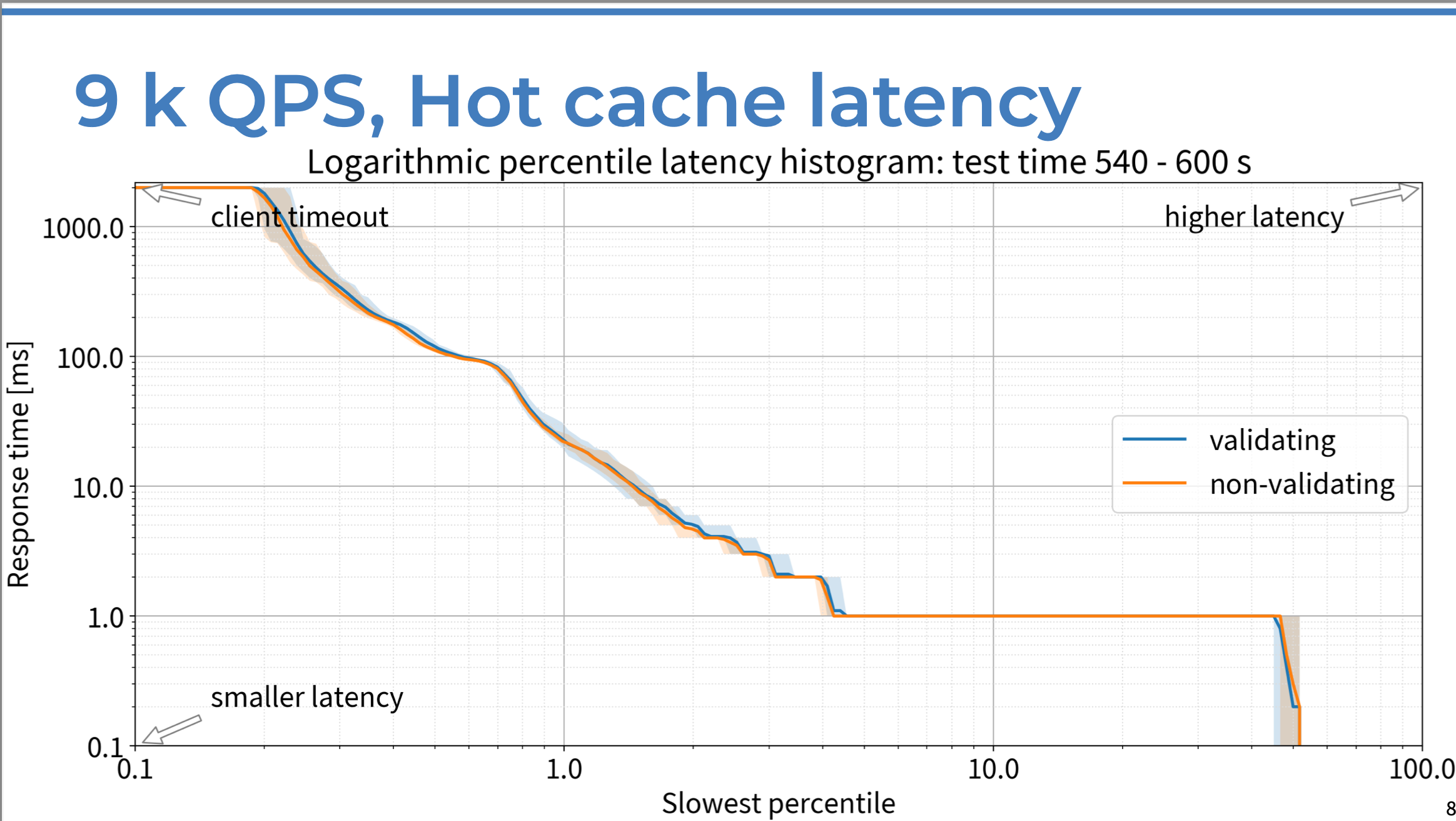

Logorithmic percentile latency histogram of response time (in ms) vs. slowest percentile of responses, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS and a hot cache.

Number of OS sockets

Traditional wisdom says we’ll need more TCP sockets, because DNSSEC packets are larger. To measure that, we focused on the number of TCP sockets in use, as reported by the operating system. But once again, we see practically no difference between the validating and non-validating use cases. If we focus on just the last minute and average the number of sockets in use, the numbers for validating and non-validating are exactly the same.

Chart of TCP sockets in use vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

The number of sockets actually in use at any given moment might not reflect the number of sockets over the test period, since some sockets might be so short-lived that they wouldn’t be recorded. To account for this, we measured the number of TCP sockets in a “time-wait” state; that is, sockets that were closed by the resolver once a DNS transaction was finished and remained in the “time-wait” state for a short period of time after closing. This was also measured at the OS level; there is some difference, but only about 14 sockets on average on a resolver that’s handling 9000 QPS, which is insignificant.

Chart of TCP sockets in time-wait state vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

For UDP sockets, the story is the same: exactly the same number of sockets in use in the last minute of the test, on average.

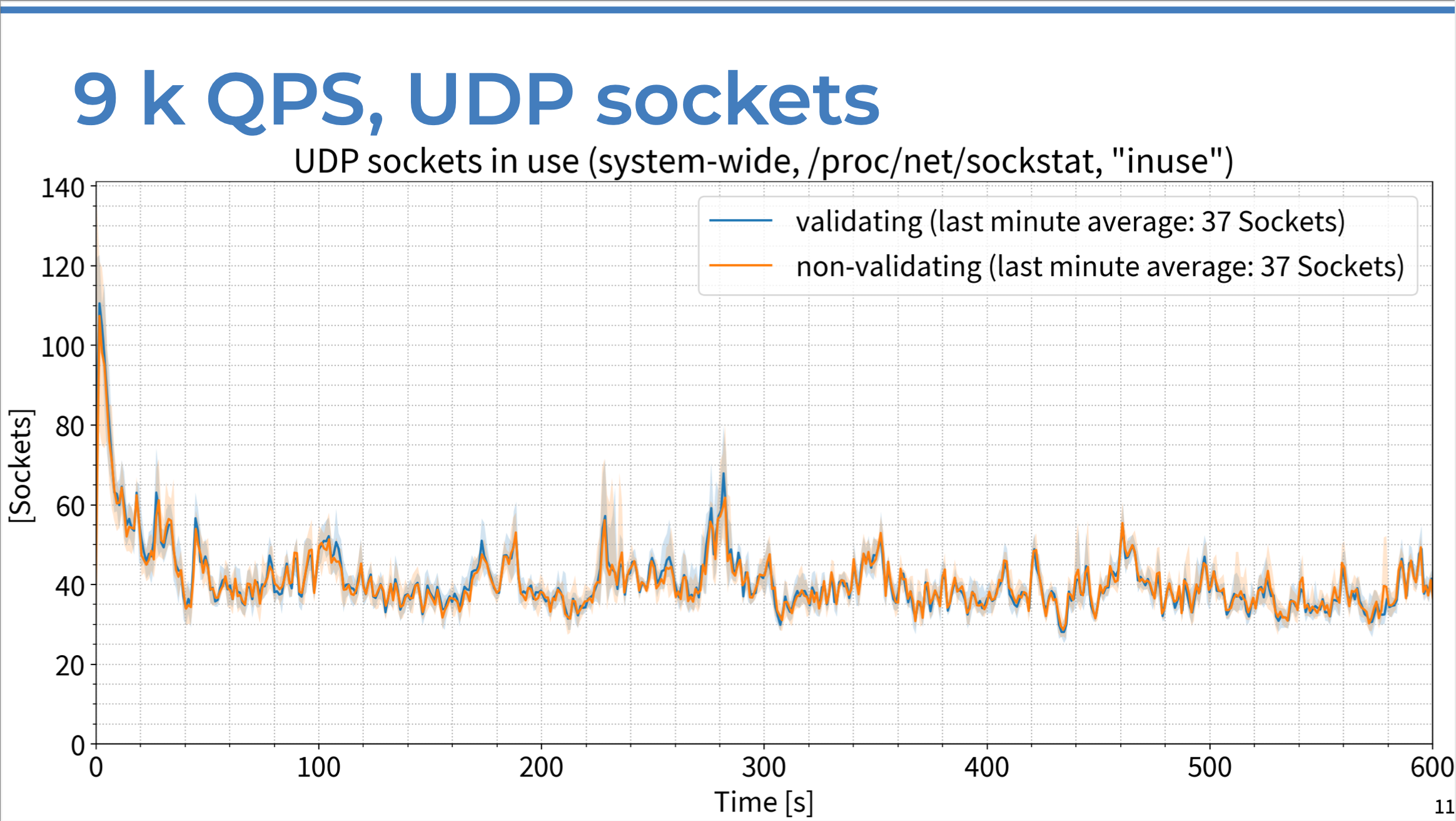

Chart of UDP sockets in use vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

Bandwidth

Traditional wisdom here tells us that DNSSEC validation will cause more packets to be sent; but again, this was not the case in our experiment. There was an extremely small increase in the first couple of seconds of the test, but after that we saw no difference.

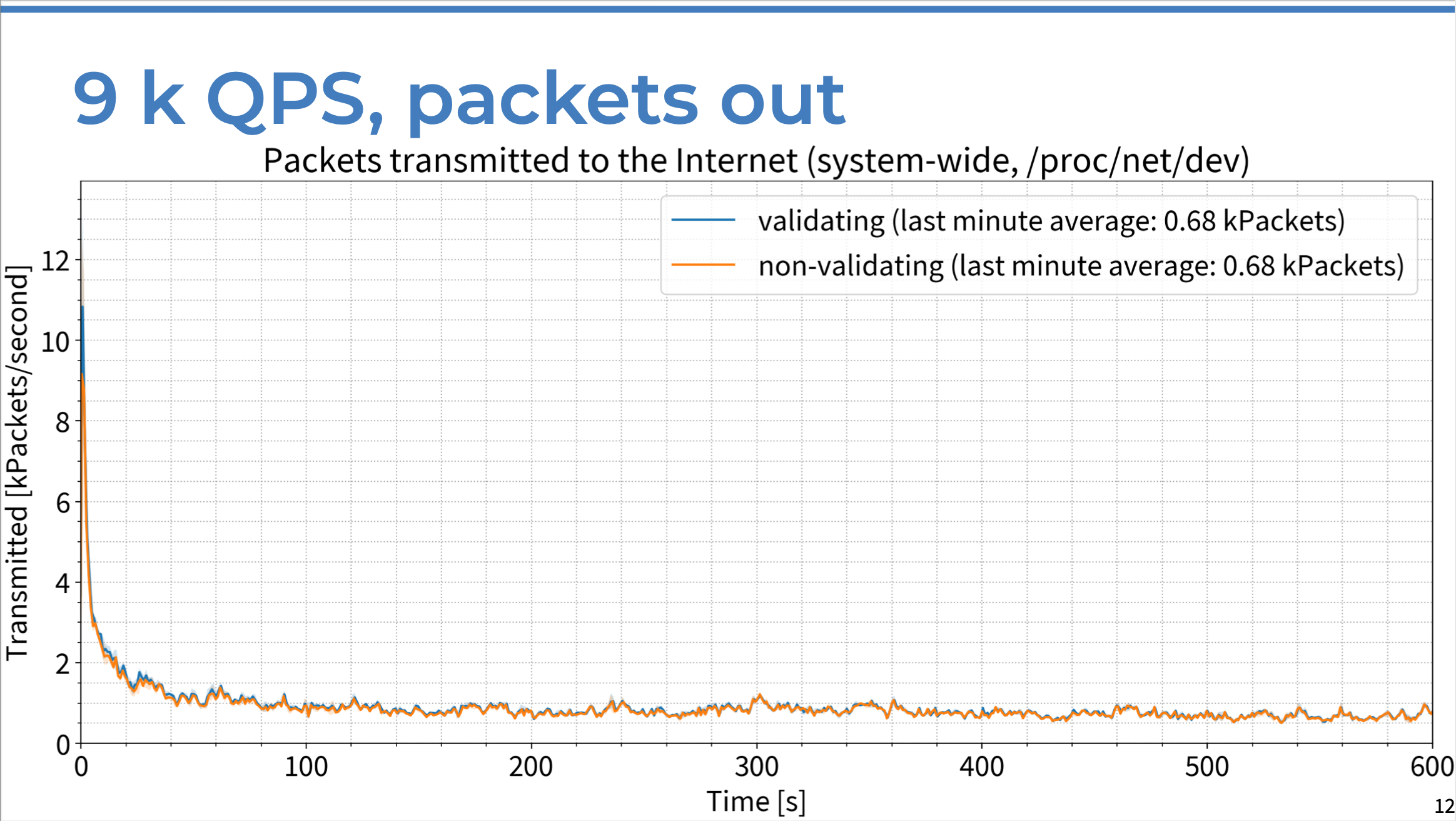

Chart of packets sent per second (in thousands) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

So bandwidth used must increase, right? Again, not really. We saw a tiny spike in the first second, but once again, by the last minute, there is no practical difference between validating and non-validating.

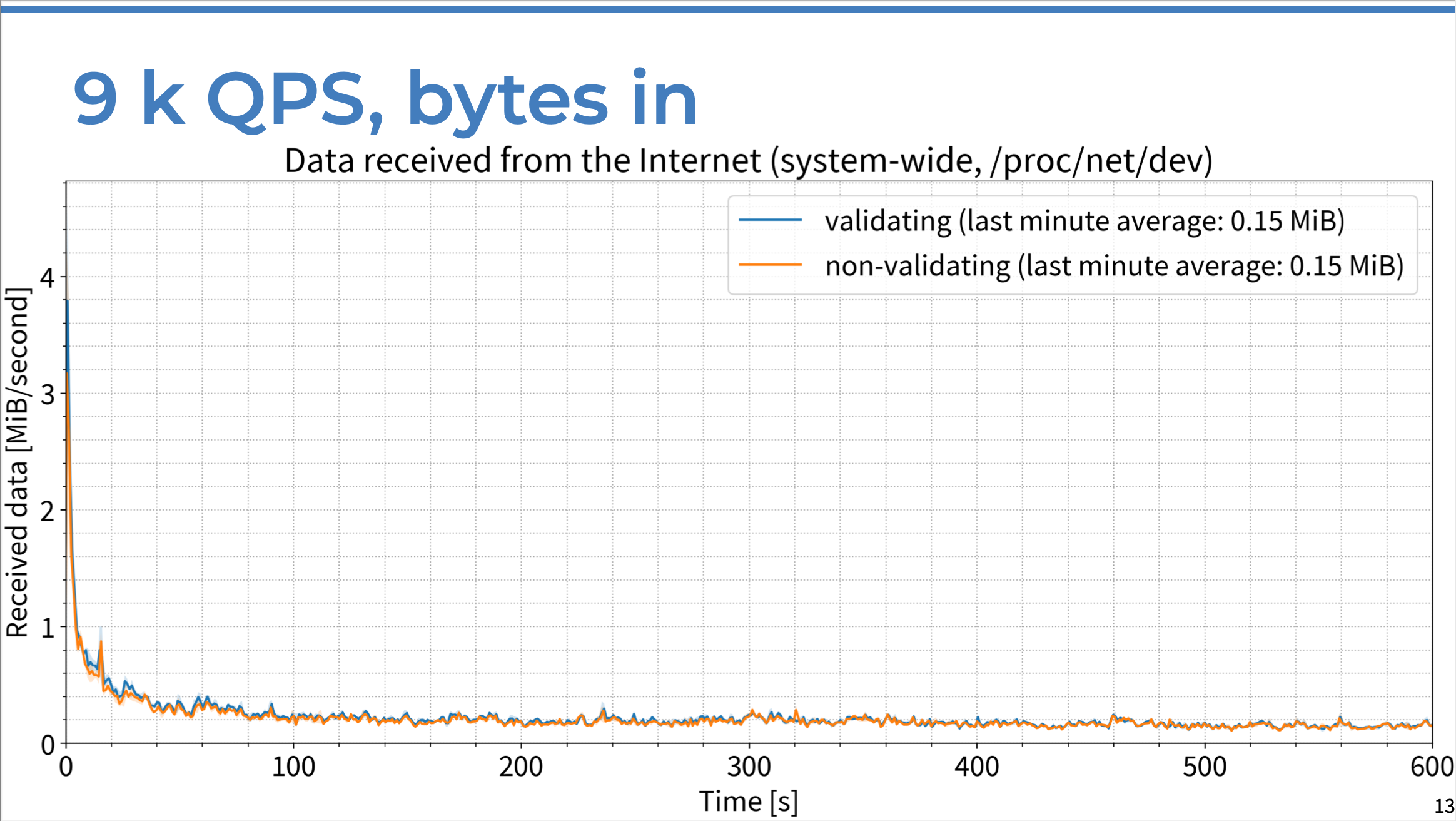

Chart of data received per second (in MB) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

CPU consumption

If we listen to the conventional wisdom, then DNSSEC validation must be CPU-intensive. But yet again, that is not the case. We may have seen a slight difference in the first minute or two, but the data quickly converged with the values for the non-validating configuration, and by the last minute there is a difference of only 2% on average. In this case, 100% means one CPU core, so 2% is practically nothing.

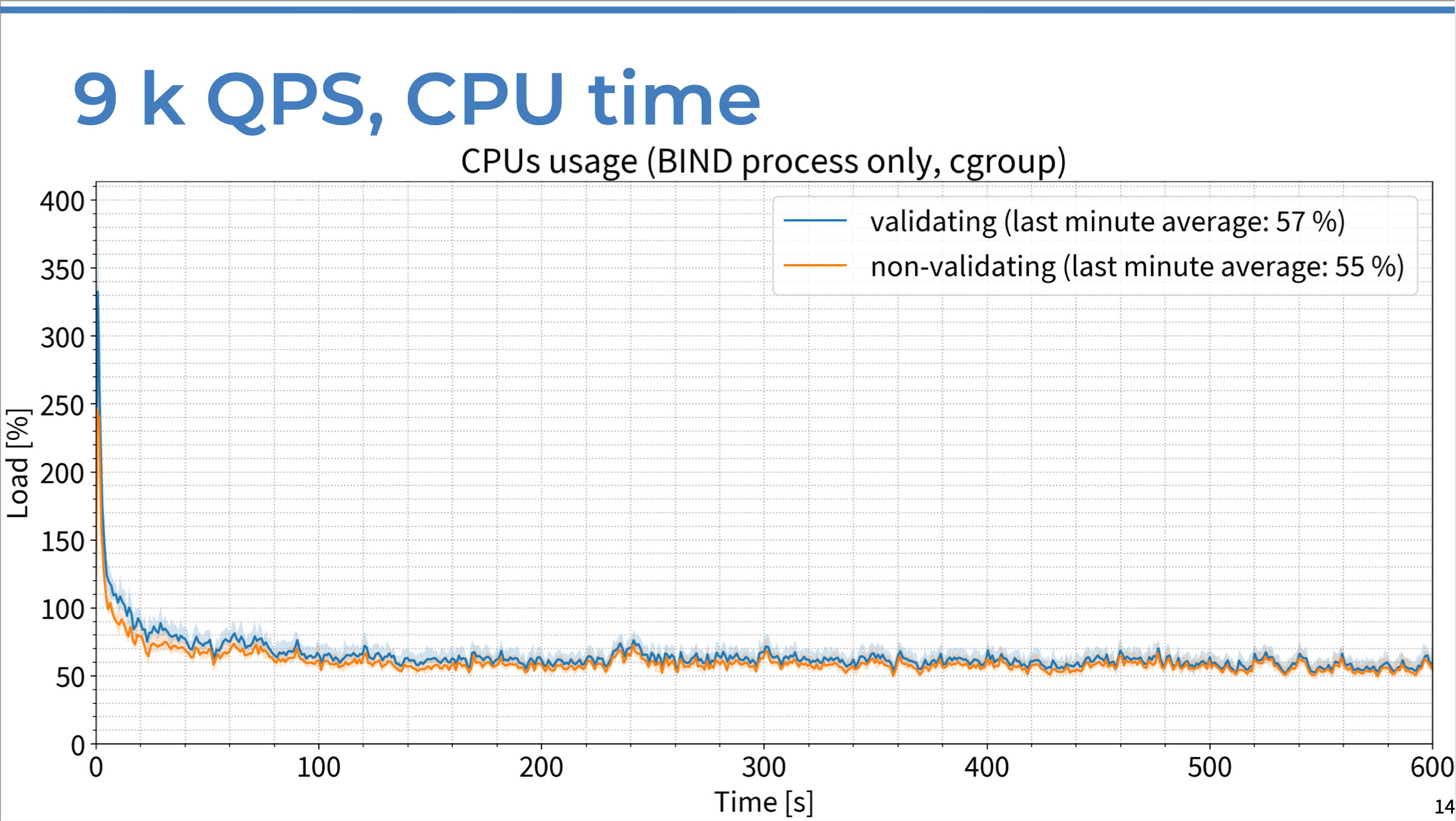

Chart of load percentage vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

Memory use

Last but not least: memory use – finally, somewhere where validating makes a visible and reproducible difference, outside the margin of error! Validation uses approximately 10% more memory on average than on a non-validating resolver during the last minute of our tests.

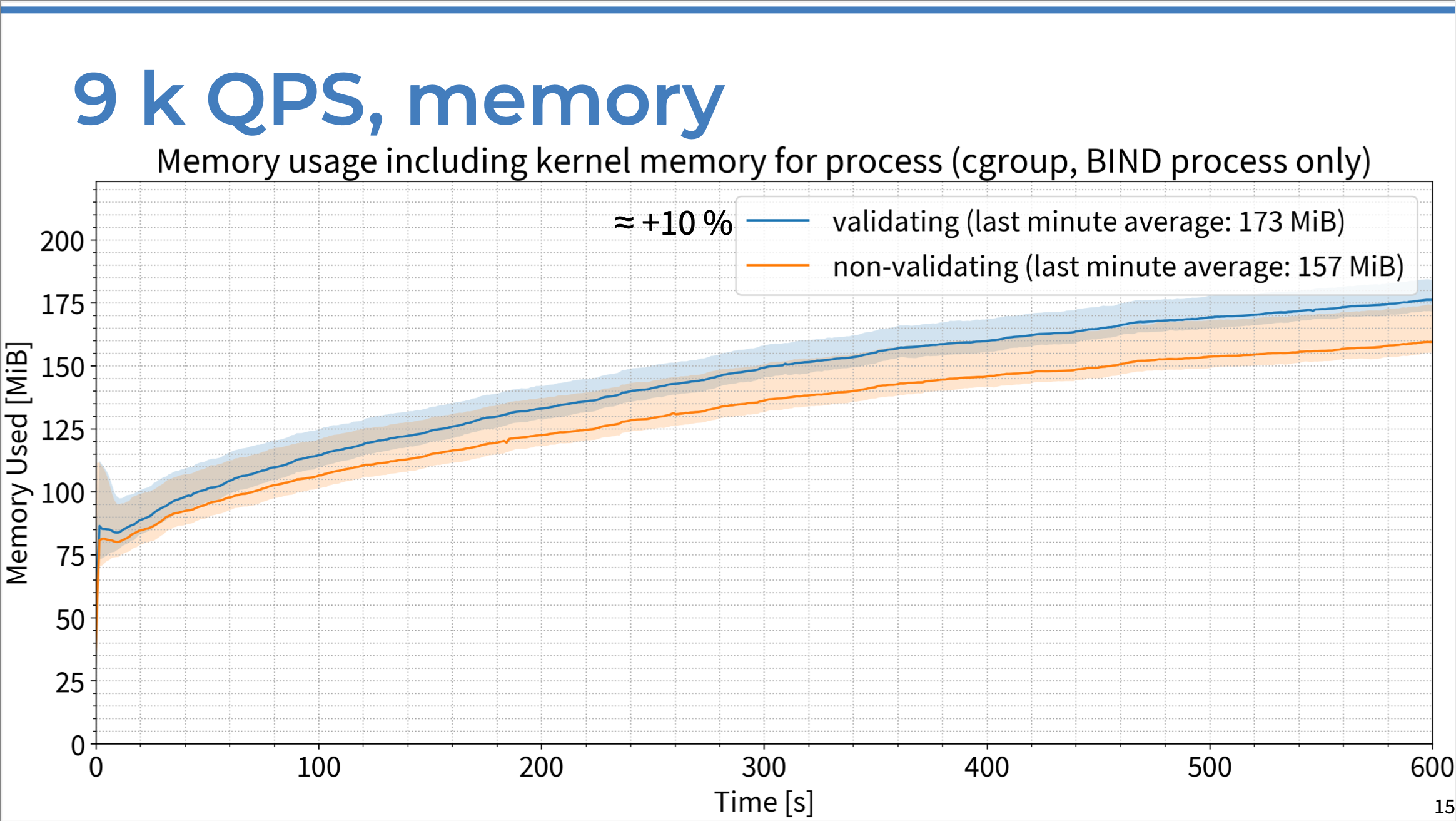

Chart of memory use (in MB) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 9K QPS.

Scenario 2: 135K QPS

In this set of tests, we ran the exact same set of experiments as before, but this time the resolver was heavily loaded.

Latency

With a completely empty cache, validation does make a difference in the first minute; the percentage of responses that did not arrive within the client timeout (the typical Windows client timeout is 2 seconds) increased. But we notice that in the very first minute, both validating and non-validating resolvers can’t keep up: they’re not warmed up and the cache is empty. More than 2% of queries were not answered in time for both validating and non-validating resolvers, so the issue is not with validation.

Logorithmic percentile latency histogram of response time (in ms) vs. slowest percentile of responses, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS and a cold cache.

But in the second minute, it’s just slightly worse for validating, and as time goes on their performance converges. By the tenth minute, it’s hard to say if there’s a meaningful difference or not.

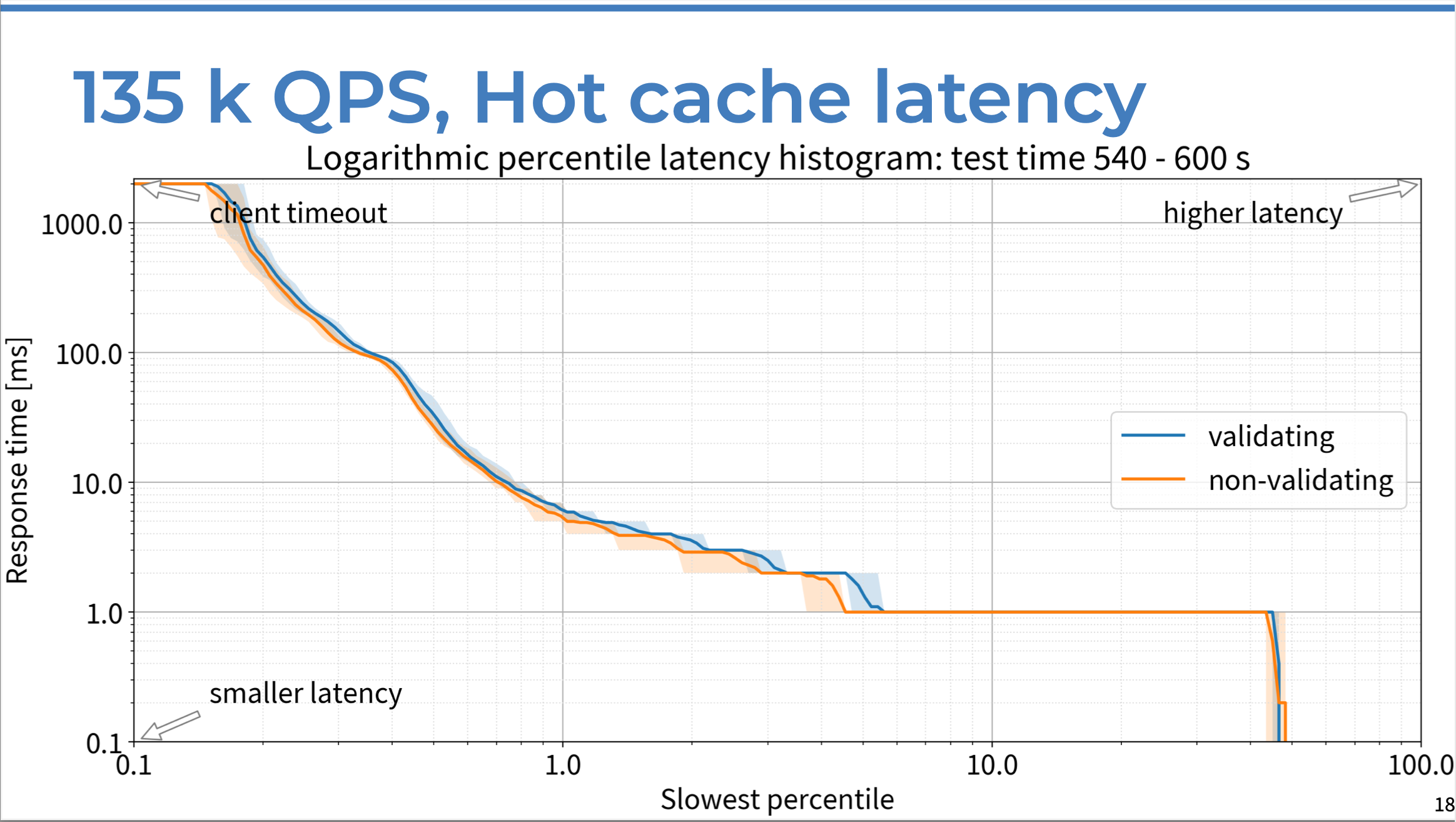

Logorithmic percentile latency histogram of response time (in ms) vs. slowest percentile of responses, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS and a hot cache.

We can conclude that if there is any difference at all, it’s an approximately 1 ms penalty for approx. 1-2% of queries. That’s the only impact of DNSSEC validation on latency for a busy resolver handling 135,000 QPS.

Number of OS sockets

Looking again at TCP sockets, is there any difference on the resolver with lots of queries and validation enabled? There is, but it’s very small: only five more sockets in use, on average, on a resolver handling 135,000 QPS.

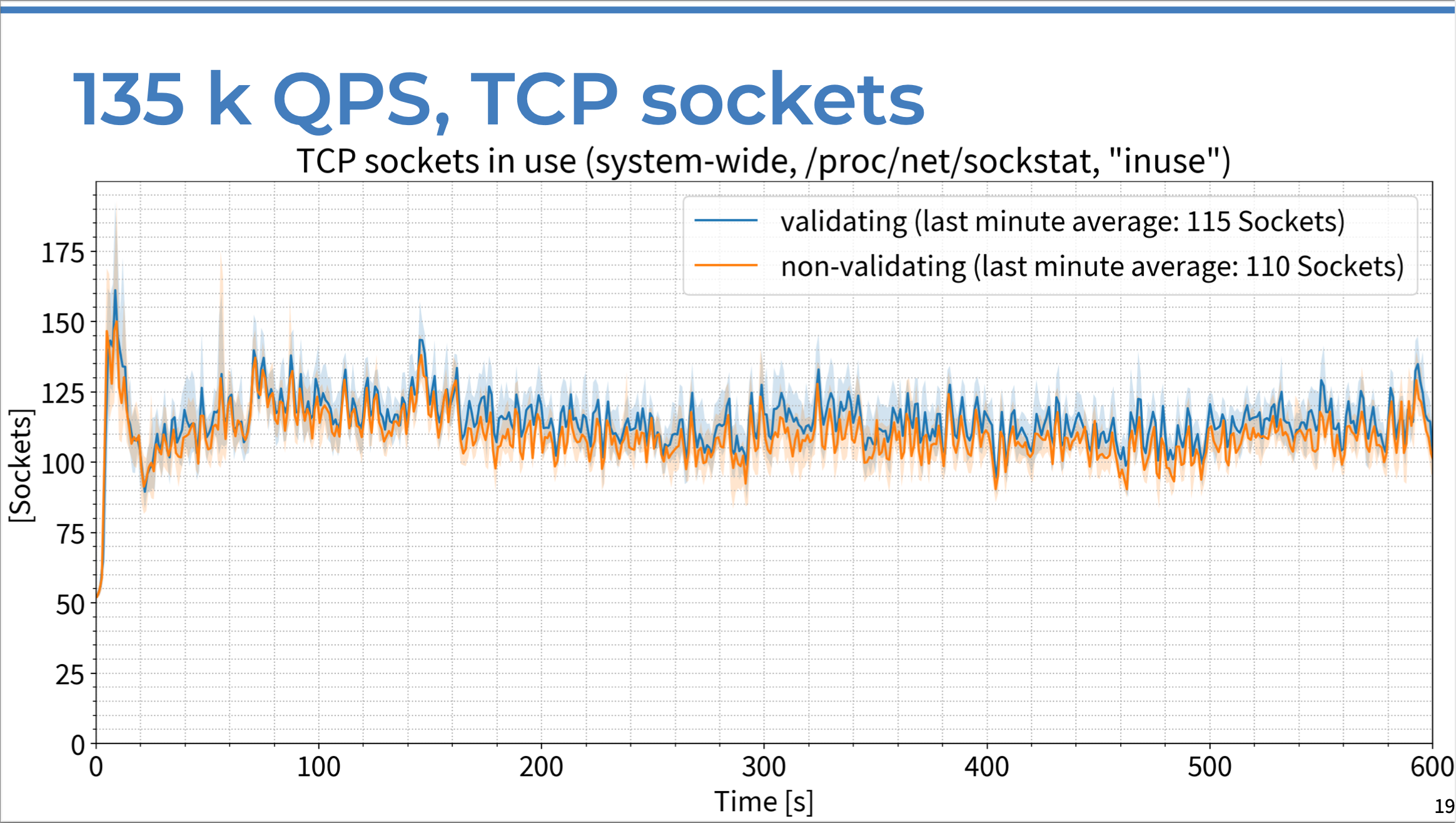

Chart of TCP sockets in use vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

If we look at TCP sockets in the time-wait state, there are about 200 more TCP sockets in use on the validating resolver - but again, this is not a significant number, and does not require any OS configuration changes to enable more open file descriptors at the same time.

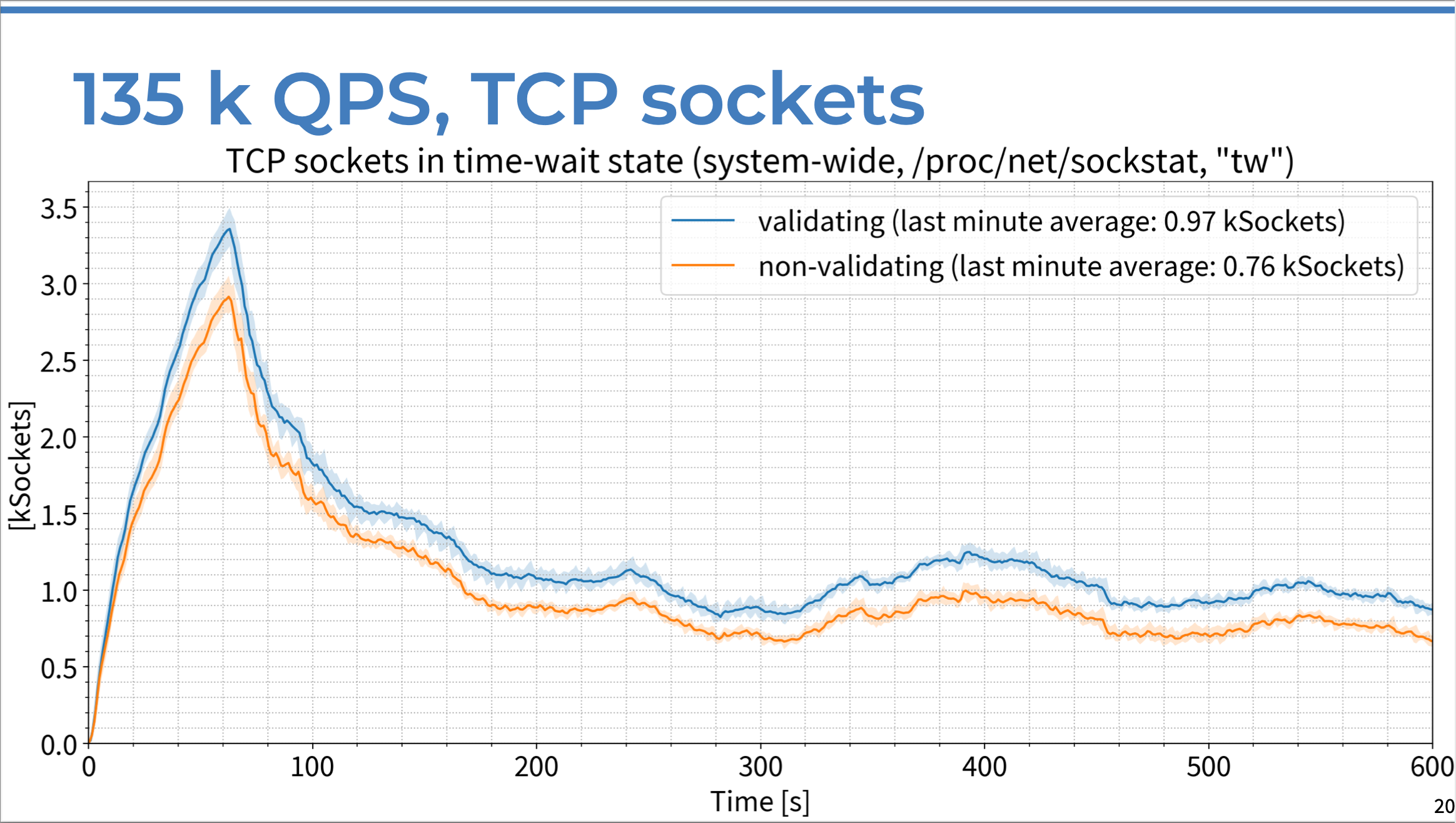

Chart of TCP sockets in time-wait state vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

As for UDP sockets, we again see only a very small difference between the validating and non-validating resolvers.

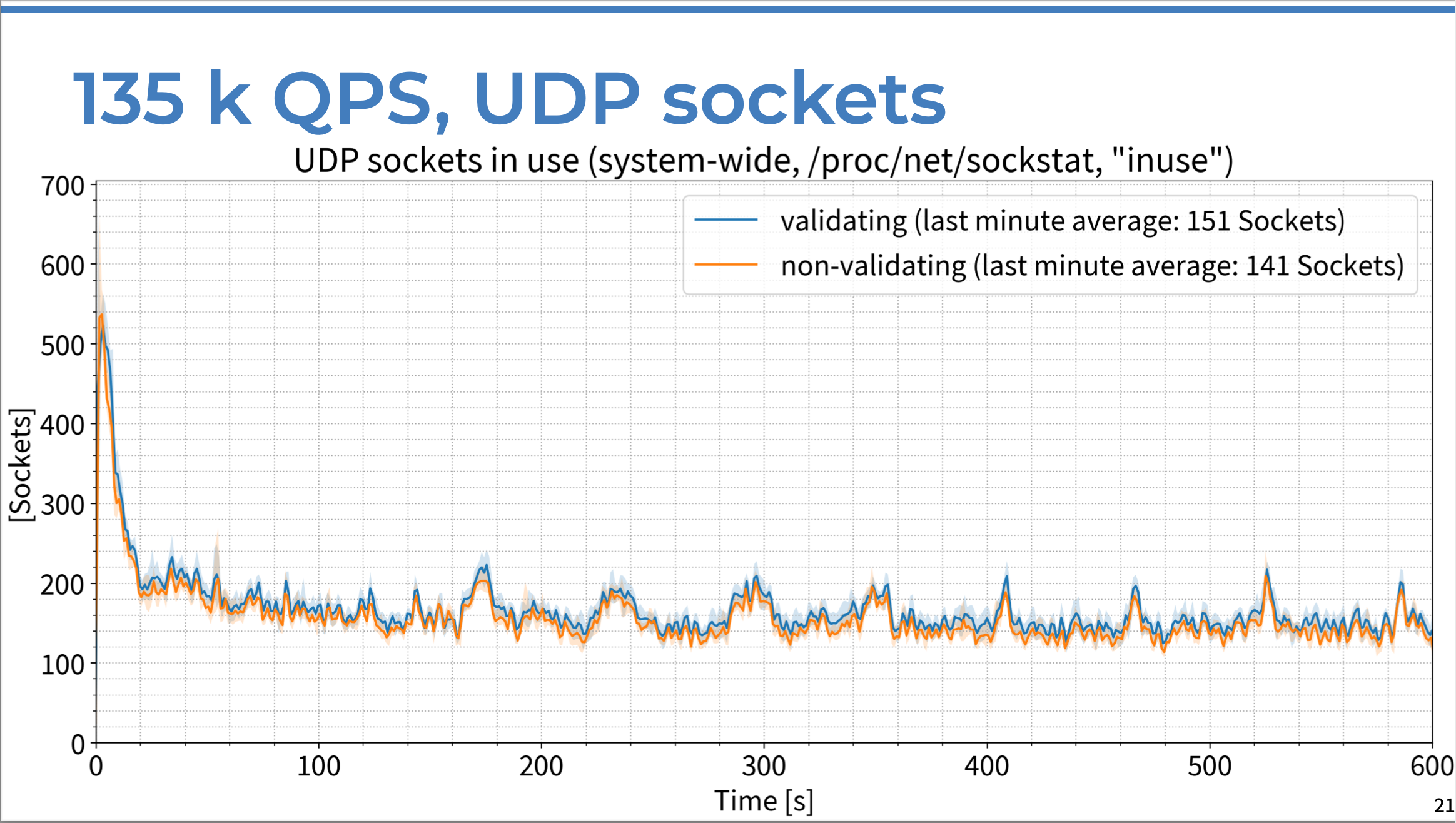

Chart of UDP sockets in use vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

Bandwidth

When we look at the number of packets being sent out with 135,000 QPS, we do see a small difference. However, it’s approximately 50 packets per second more being sent out from the validating server than from the non-validating server, which is not even noticeable.

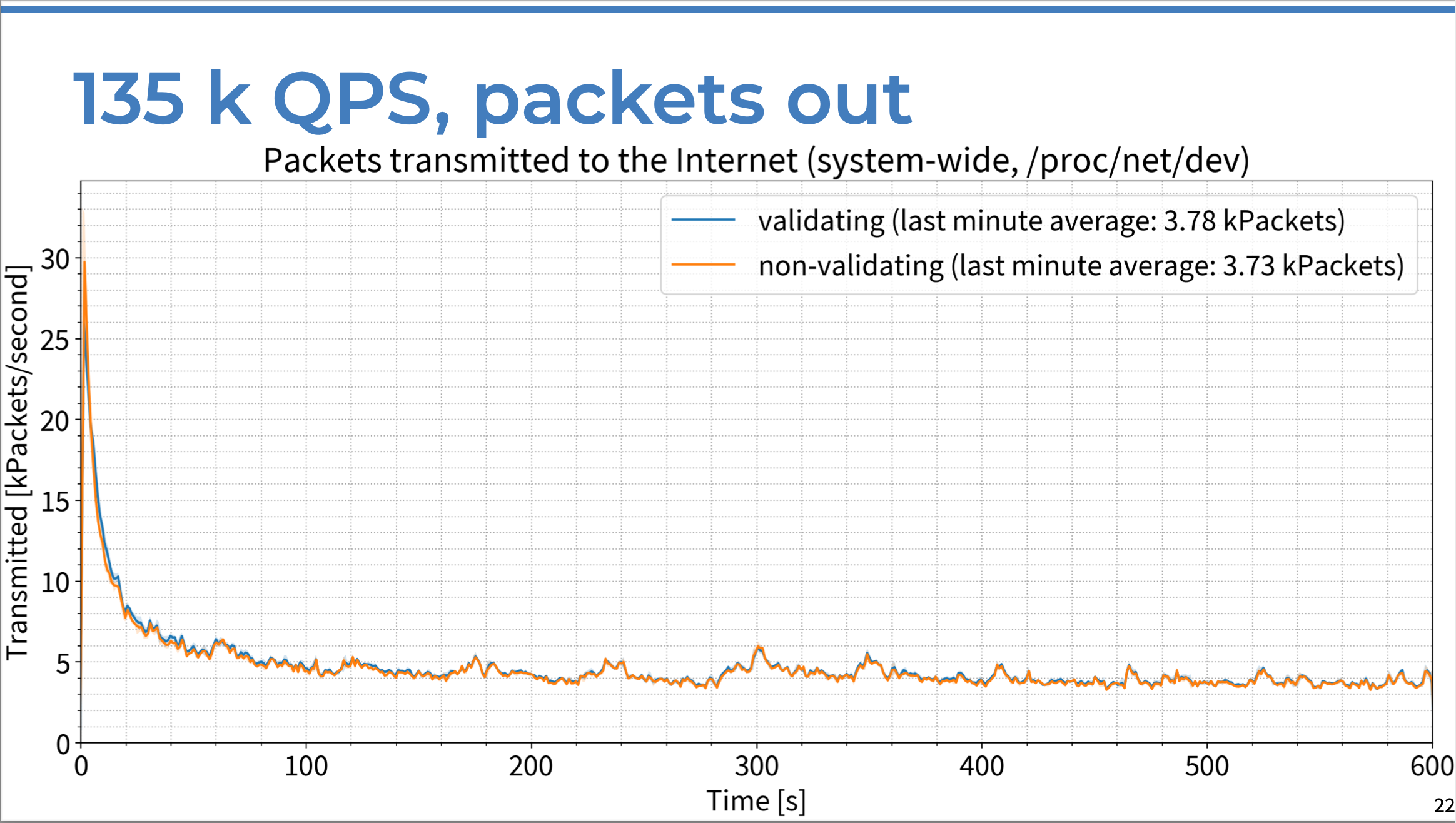

Chart of packets sent per second (in thousands) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

And for the number of bytes received by the server, the difference is not measurable.

Chart of data received per second (in MB) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

CPU consumption

Surely, the CPU must be burning now, right? Again, that is not the case. We saw a slight difference in CPU usage in the first couple of minutes of our tests, but after that the two sets of data quickly converge. By the tenth minute, we saw only a 22% increase in CPU time consumption by the validating resolver, which is one-quarter of one CPU core - nothing you would notice in practice.

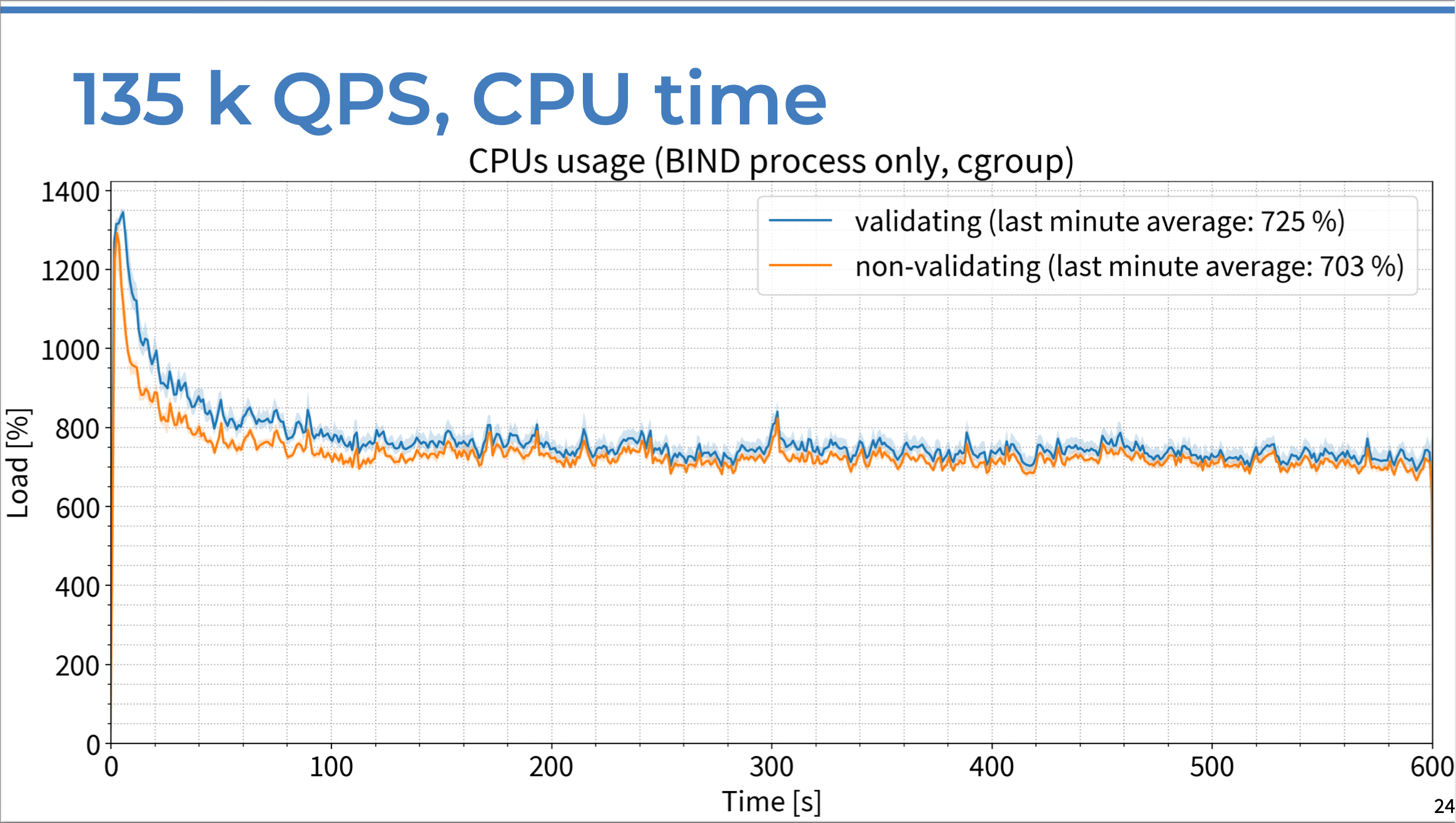

Chart of load percentage vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

Memory use

Once again, this is the only chart where we see any significant difference between validating and non-validating. With 135,000 QPS, memory use increased by approximately 9% for validating servers, averaged over the last minute of the test. Of course it requires more memory to store the larger amount of data, but not a very significant amount.

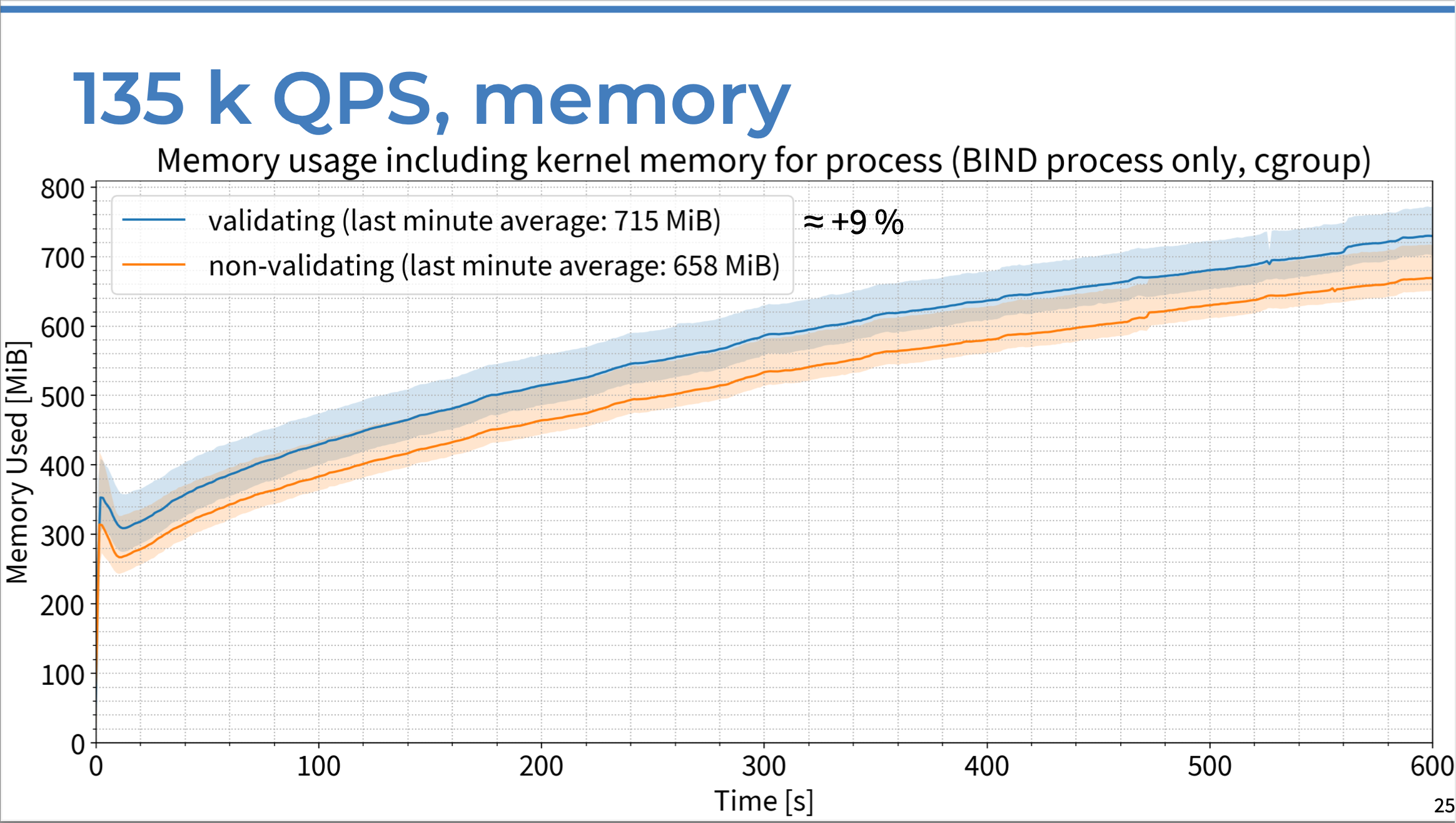

Chart of memory use (in MB) vs. time in seconds, comparing DNSSEC-validating resolver response to non-validating server response with 135K QPS.

Conclusion

DNSSEC validation has a negligible impact on server latency, bandwidth usage, CPU time consumption, and the number of OS sockets. The only area of our tests in which we saw a significant impact from DNSSEC validation was memory consumption, which increased by about 10% with validation.

For those who still think this too hard to believe, it’s worth considering that:

DNSSEC validation costs are paid only on cache misses — and DNS cache is incredibly efficient! Even in the first minute of the test, more than 90% of queries are answered from cache and the ratio increases as time progresses.

DNSSEC metadata, which requires a separate round-trip to obtain (DNSKEY records), is very rare and shared on the DNS zone level, which makes the DNS cache even more efficient.

If you are after the truth and not speculations you can also measure the impact yourself, using your own traffic capture. The measurement tools are open source! See this video and an earlier blog on how to do such measurements.

Q&A

  1. What fraction of the sample queries were in signed zones?

The original data is from a Nordic service provider, with lots of signed domains in their top-level domain (TLD) and lots of use of their local domains. I can’t provide any more specific answers than that, because:

  • Validation costs happen mostly on cache misses.
  • Data visible on resolver output makes it hard to distinguish cache miss/hit for any given query, especially because it can be a partial miss - e.g. when a CNAME link in the chain expired sooner than the rest, etc. (This also makes the definition of cache miss/hit muddy.)
  • The number of names is irrelevant unless it takes into account the TTL and query patter. Also don’t forget aggressive NSEC use and wildcards… Not all the names do exist.
  • For the reasons stated, AD=1 is not going to answer the question.
  • The number of validation operations is something I do have in the stats, but it also is not sufficient because there is no 1:1 mapping between queries and validations. (Multiple RRsets in one answer on one side, query coalescing on the other side.)
  1. How much time elapsed between the sampling of the traffic data and the running of the experiments? How would a large delay with an expected volume of change to the external Internet delegations and signing, etc., impact the results?

My professional opinion is that the correct and feasible answer is “none.” Everything so much depends on the data set that coming up with a generic equation would mean abstracting properties of all the target zones + query patterns.

For this reason this measurement gives the answer to a specific question: What is the likely outcome of turning DNSSEC-validation on/off if you are a telco in northern Europe?

I hazard to say that this measurement errs on the side of “more resource usage” because of the DNS specifics of northern Europe, but I’m not willing to go further than that.
